Hollow Section

Hollow Section

    Material of hollow section

    ASTM A500 Grade B
    ASTM A513 (1020-1026)
    ASTM A36 (A36)
    EN 10210:S235,S355,S235JRH,
    S355J2H,S355NH EN 10219:S235,S355,S235JRH,
    S275J0H, S275J2H, S355J0H, S355J2H



    Rectangular/ Square hollow section manufacturing process
    Rectangular/ Square hollow section are formed from coils and then ran through a series of dies. They are are welded from the inside to form their shape.

    Hollow Section
    Process of hollow section
    Cold Formed Square Hollow Section
    Cold Formed Rectangular Hollow Section
    Hot Finish Square Hollow Section
    Hot Finish Rectangular Hollow Section







    Types of hollow section
    Carbon Hollow Section

    A500 Gr-B Standard specification published by the ASTM for cold-formed welded and seamless carbon steel structural tubing in round, square, and rectangular shapes.
    A513 Offers high weldability and is used frequently in structural applications in bridges and buildings as well as in both the automotive and appliance industry.





    Carbon Steel Structural Hollow Sections Packaging and Advantages
    Types of Packaging:
    Bundles (hexagonal)
    Wooden Boxes
    Crates (steel/wooden)
    Special crates for Structural Hollow Sections with each radius separated
    Packaging for Carbon Steel Seamless Pipe as per customer’s requirements

    Advantages :
    High Strength
    Resistant High Mechanical Stresses
    Resistant to High Pressure
    Resistant to High Temperature
    Good Formality
    Reusable



    Stainless Hollow Section

    304 Offers resistance to corrosion, has good formability and can be readily welded by all methods. One of the most commonly used grades across the industry.
    304L   Extra low carbon avoids harmful carbide precipitation due to welding. Same corrosion resistance as 304 with lower mechanical properties.
    316 Better pitting and corrosion resistance than 304, as well as higher strength at elevated temperatures. 316 can be used for valves, marine equipment, pumps, and chemical equipment.
    316L Extra low carbon avoids harmful carbide precipitation due to welding. Same excellent corrosion resistance as 316. It exhibits the same high strength, toughness and workability as 304 alloys.

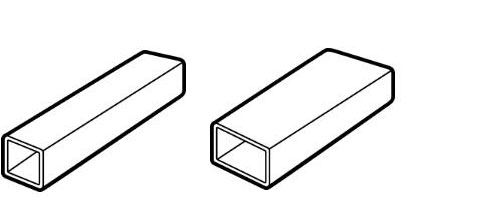

    Square TubeRectangular Tube
    Square Tube ( rectangular tube below)

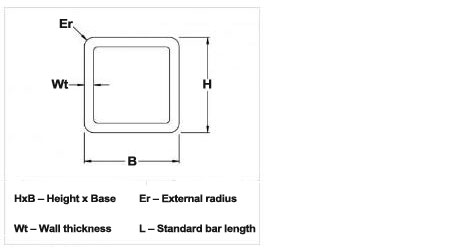

    Width
                                              Thickness
    16*16mm ~ 1000*1000mm               0.4mm ~ 50mm
    Sizes by MM  (diameter) Thickness
    mm mm
    16mm×16mm 0.4mm~1.5mm
    18mm×18mm 0.4mm~1.5mm
    20mm×20mm 0.4mm~3mm
    22mm×22mm 0.4mm~3mm
    25mm×25mm 0.6mm~3mm
    30mm×30mm 0.6mm~4mm
    32mm×32mm 0.6mm~4mm
    34mm×34mm 1mm~2mm
    35mm×35mm 1mm~4mm
    38mm×38mm 1mm~4mm
    40mm×40mm 1mm~4.5mm
    44mm×44mm 1mm~4.5mm
    45mm×45mm 1mm~5mm
    50mm×50mm 1mm~5mm
    52mm×52mm 1mm~5mm
    60mm×60mm 1mm~5mm
    70mm×70mm 2mm~6mm
    75mm×75mm 2mm~6mm
    76mm×76mm 2mm~6mm
    80mm×80mm 2mm~8mm
    85mm×85mm 2mm~8mm
    90mm×90mm 2mm~8mm
    95mm×95mm 2mm~8mm
    100mm×100mm 2mm~8mm
    120mm×120mm 4mm~8mm
    125mm×125mm 4mm~8mm
    130mm×130mm 4mm~8mm
    140mm×140mm 6mm~10mm
    150mm×150mm 6mm~10mm
    160mm×160mm 6mm~10mm
    180mm×180mm 6mm~12mm
    200mm×200mm 6mm~30mm
    220mm×220mm 6mm~30mm
    250mm×250mm 6mm~30mm
    270mm×270mm 6mm~30mm
    280mm×280mm 6mm~30mm
    300mm×300mm 8mm~30mm
    320mm×320mm 8mm~30mm
    350mm×350mm 8mm~30mm
    380mm×380mm 8mm~30mm
    400mm×400mm 8mm~30mm
    420mm×420mm 10mm~30mm
    450mm×450mm 10mm~30mm
    480mm×480mm 10mm~30mm
    500mm×500mm 10mm~30mm
    550mm×550mm 10mm~40mm
    600mm×600mm 10mm~40mm
    700mm×700mm 10mm~40mm
    800mm×800mm 10mm~50mm
    900mm×900mm 10mm~50mm
    1000mm×1000mm 10mm~50mm

    Width                                            Thickness
    40*20mm ~ 300*200mm                           1.6mm ~ 16mm

    SIZE mm

    WEIGHT kg/m

    EST. LBS. PER FT.



    SIZE mm

    WEIGHT kg/m

     EST. LBS. PER FT.

    40 x 20 x 1.60

    1.380

    0.93



    150 x 100 x 6.30

    22.400

    15.08

    40 x 20 x 2.60

    2.100

    1.41



    150 x 100 x 8.00

    27.700

    18.64

    50 x 30 x 1.60

    1.880

    1.27



    150 x 100 x 10.00

    35.714

    24.04

    50 x 30 x 2.60

    2.920

    1.97



    160 x 80 x 3.20

    11.500

    7.74

    50 x 30 x 2.90

    3.320

    2.23



    160 x 80 x 4.00

    14.300

    9.62

    50 x 30 x 3.20

    3.490

    2.35



    160 x 80 x 5.00

    17.400

    11.71

    50 x 30 x 4.00

    4.410

    2.97



    160 x 80 x 6.30

    21.400

    14.40

    60 x 40 x 2.60

    3.730

    2.51



    160 x 80 x 8.00

    26.400

    17.77

    60 x 40 x 2.90

    4.230

    2.85



    160 x 80 x 10.00

    32.545

    21.87

    60 x 40 x 3.20

    4.500

    3.03



    160 x 90 x 4.50

    16.600

    11.17

    60 x 40 x 4.00

    5.670

    3.82



    160 x 90 x 5.60

    20.400

    13.73

    70 x 40 x 2.90

    4.690

    3.16



    160 x 90 x 7.10

    25.300

    17.03

    70 x 40 x 4.00

    6.300

    4.24



    160 x 90 x 8.80

    30.500

    20.53

    80 x 40 x 2.60

    4.550

    3.06



    160 x 90 x 10.00

    34.100

    22.95

    80 x 40 x 2.90

    5.140

    3.46



    180 x 100 x 4.00

    16.800

    11.31

    80 x 40 x 3.20

    5.500

    3.70



    180 x 100 x 5.00

    20.500

    13.80

    80 x 40 x 4.00

    6.930

    4.66



    180 x 100 x 5.60

    23.000

    15.48

    80 x 40 x 5.00

    8.470

    5.70



    180 x 100 x 6.30

    25.400

    17.09

    80 x 40 x 6.30

    10.400

    7.00



    180 x 100 x 7.10

    28.600

    19.25

    90 x 50 x 2.60

    5.370

    3.61



    180 x 100 x 8.80

    34.700

    23.35

    90 x 50 x 3.20

    6.640

    4.47



    180 x 100 x 10.00

    38.800

    26.11

    90 x 50 x 4.00

    8.180

    5.51



    180 x 100 x 12.50

    46.900

    31.56

    90 x 50 x 5.00

    10.000

    6.73



    200 x 100 x 4.00

    18.000

    12.11

    90 x 50 x 6.30

    12.300

    8.28



    200 x 100 x 5.00

    22.100

    14.20

    90 x 50 x 7.10

    13.700

    9.22



    200 x 100 x 6.30

    27.400

    18.44

    100 x 50 x 3.60

    7.980

    5.37



    200 x 100 x 8.00

    34.000

    22.88

    100 x 50 x 4.50

    9.830

    6.62



    200 x 100 x 10.00

    40.600

    27.32

    100 x 50 x 5.60

    12.000

    8.08



    200 x 120 x 4.00

    19.300

    12.99

    100 x 50 x 7.10

    14.800

    9.96



    200 x 120 x 5.00

    23.700

    15.95

    100 x 50 x 8.00

    16.400

    11.04



    200 x 120 x 6.30

    29.600

    19.92

    100 x 60 x 3.20

    7.510

    5.05



    200 x 120 x 8.00

    36.500

    24.56

    100 x 60 x 3.60

    8.550

    5.75



    200 x 120 x 8.80

    36.900

    24.83

    100 x 60 x 4.50

    10.500

    7.07



    200 x 120 x 10.00

    45.100

    31.62

    100 x 60 x 5.60

    12.900

    8.68



    200 x 120 x 12.50

    54.700

    38.87

    100 x 60 x 6.30

    13.500

    9.09



    200 x 120 x 14.20

    60.900

    43.64

    100 x 60 x 7.10

    15.900

    10.70



    220 x 80 x 6.00

    26.816

    18.02

    100 x 60 x 8.80

    19.200

    12.92



    220 x 120 x 6.30

    31.600

    21.27

    100 x 80 x 6.3

    16.370

    11.02



    220 x 120 x 8.00

    39.400

    26.52

    110 x 60 x 3.60

    9.050

    6.09



    220 x 120 x 10.00

    46.200

    31.09

    110 x 60 x 4.50

    11.100

    7.47



    220 x 120 x 12.50

    58.700

    39.51

    110 x 60 x 5.60

    13.600

    9.15



    220 x 120 x 14.20

    65.400

    44.01

    110 x 60 x 7.10

    16.800

    11.31



    250 x 150 x 5.00

    29.900

    20.12

    110 x 60 x 8.80

    20.100

    13.53



    250 x 150 x 6.30

    37.300

    25.10

    110 x 70 x 3.20

    8.510

    5.73



    250 x 150 x 8.00

    46.500

    31.29

    110 x 70 x 4.00

    10.800

    7.27



    250 x 150 x 10.00

    56.300

    37.89

    110 x 70 x 5.00

    12.700

    8.55



    250 x 150 x 12.50

    68.300

    45.97

    110 x 70 x 6.30

    15.500

    10.43



    260 x 140 x 6.30

    37.500

    25.23

    120 x 60 x 3.20

    8.510

    5.73



    260 x 140 x 8.00

    46.900

    31.56

    120 x 60 x 4.00

    10.600

    7.13



    260 x 140 x 10.00

    57.600

    38.76

    120 x 60 x 5.00

    13.000

    8.75



    260 x 140 x 12.50

    70.400

    47.38

    120 x 60 x 6.30

    16.100

    10.84



    260 x 140 x 14.20

    78.800

    53.03

    120 x 60 x 7.10

    17.900

    12.05



    260 x 180 x 6.30

    41.500

    27.93

    120 x 60 x 8.80

    21.500

    14.47



    260 x 180 x 8.00

    52.000

    35.00

    120 x 80 x 3.20

    12.100

    8.14



    260 x 180 x 10.00

    63.900

    43.00

    120 x 80 x 6.30

    17.500

    11.78



    260 x 180 x 12.50

    78.300

    52.70

    140 x 70 x 4.00

    12.500

    8.41



    260 x 180 x  14.20

    87.700

    59.02

    140 x 70 x 5.00

    15.400

    10.36



    300 x 100 x 5.00

    30.268

    20.34

    140 x 70 x 6.30

    19.000

    12.79



    300 x 100 x 8.00

    47.679

    32.04

    140 x 70 x 7.10

    21.200

    14.27



    300 x 100 x 10.00

    58.979

    39.63

    140 x 70 x 8.80

    25.600

    17.23



    300 x 200 x 5.00

    37.800

    25.44

    140 x 80 x 3.20

    10.500

    7.07



    300 x 200 x 6.30

    47.100

    31.70

    140 x 80 x 4.00

    13.100

    8.82



    300 x 200 x 8.00

    59.100

    39.77

    140 x 80 x 5.00

    16.200

    10.90



    300 x 200 x 10.00

    72.000

    48.46

    140 x 80 x 6.30

    20.000

    13.46



    300 x 200 x 12.00

    88.000

    59.22

    140 x 80 x 8.00

    24.800

    16.69



    140 x 80 x 10.00

    30.200

    20.32



    150 x 100 x 3.20

    12.000

    8.08



    150 x 100 x 4.00

    14.900

    10.03

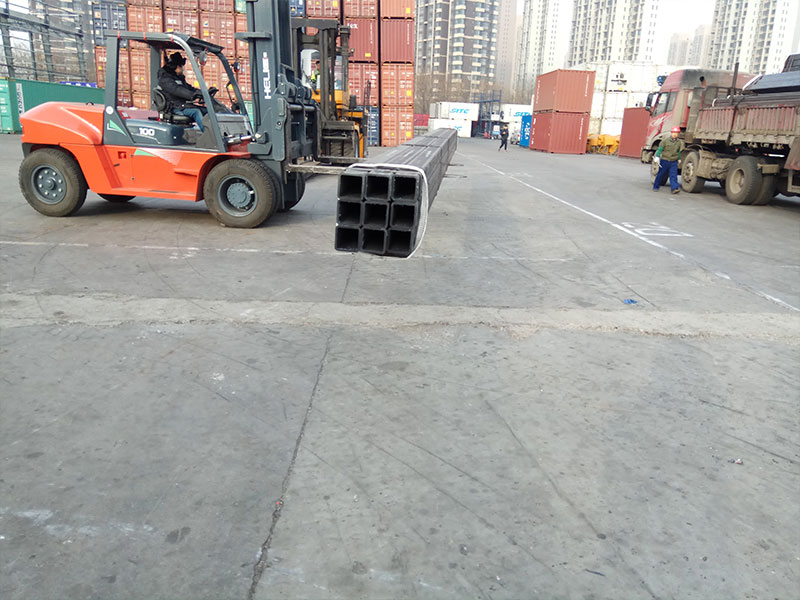

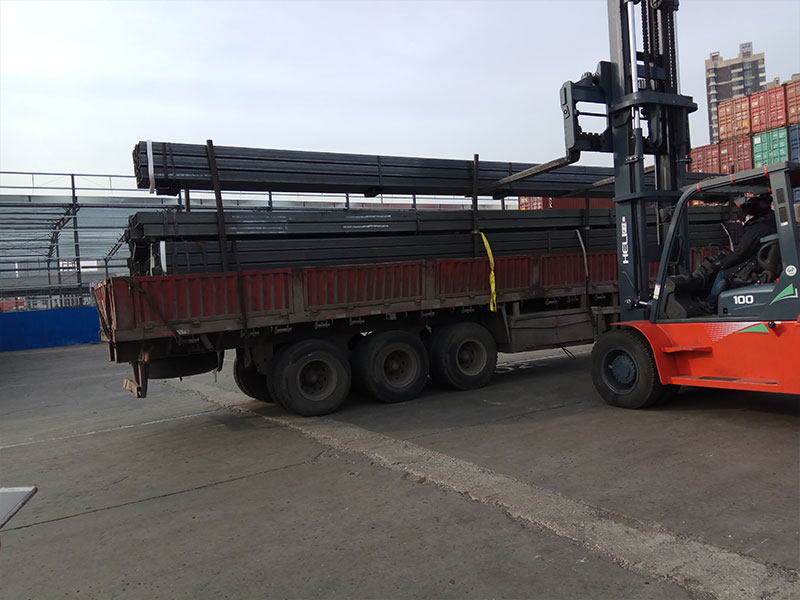

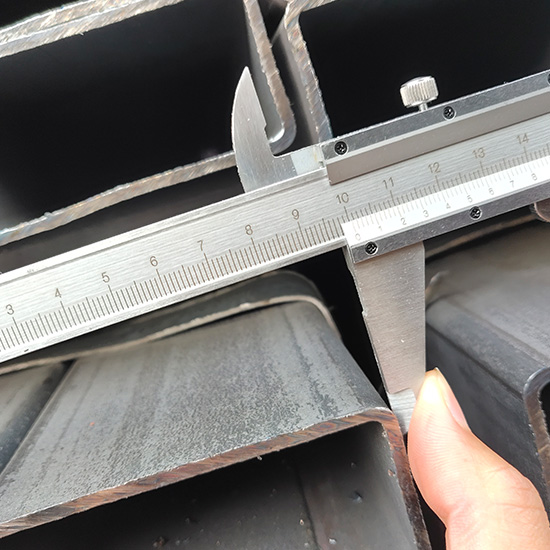

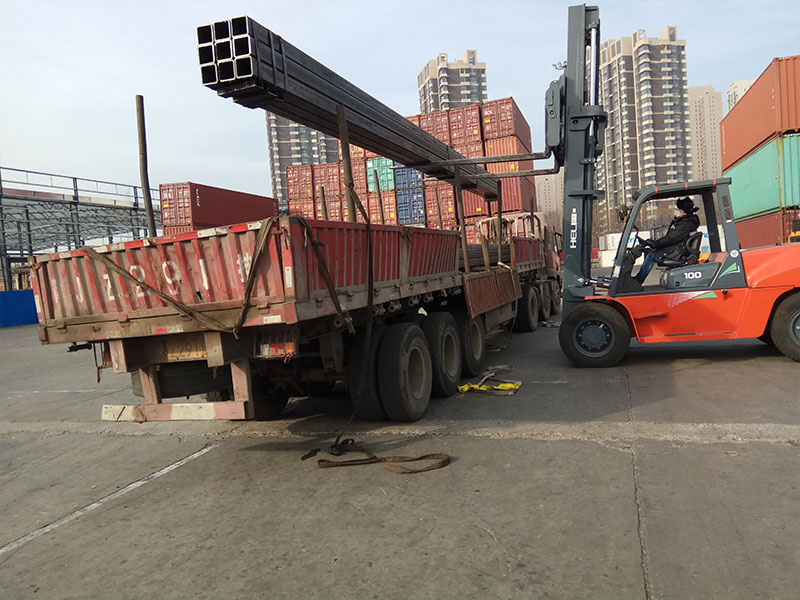

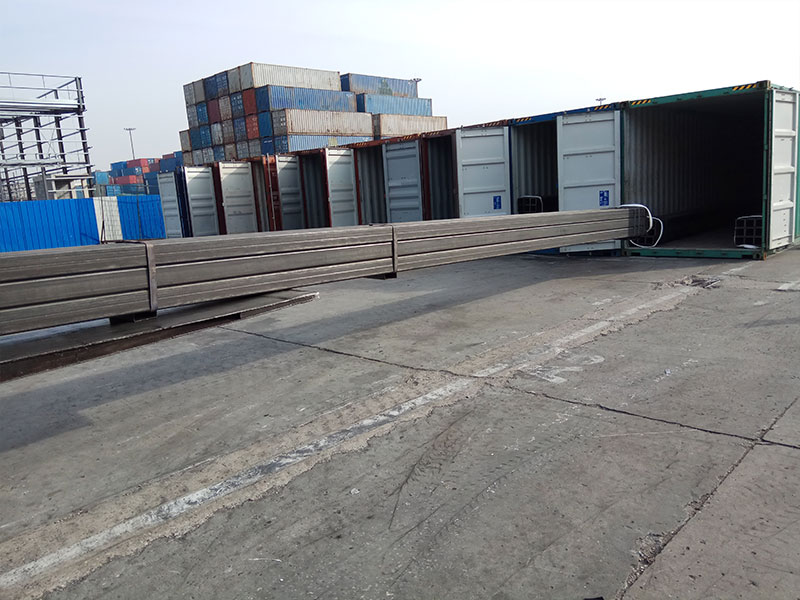

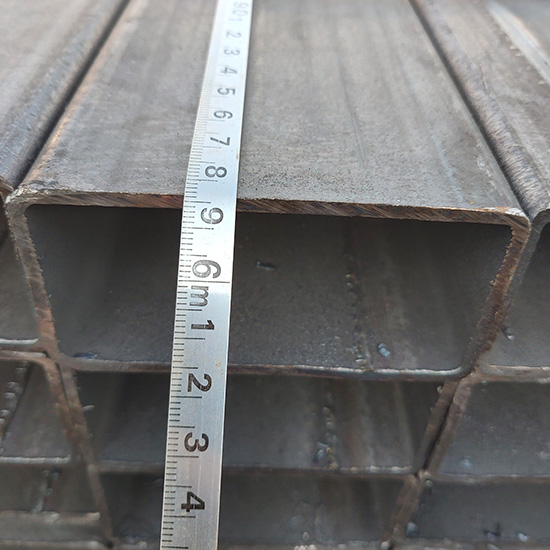

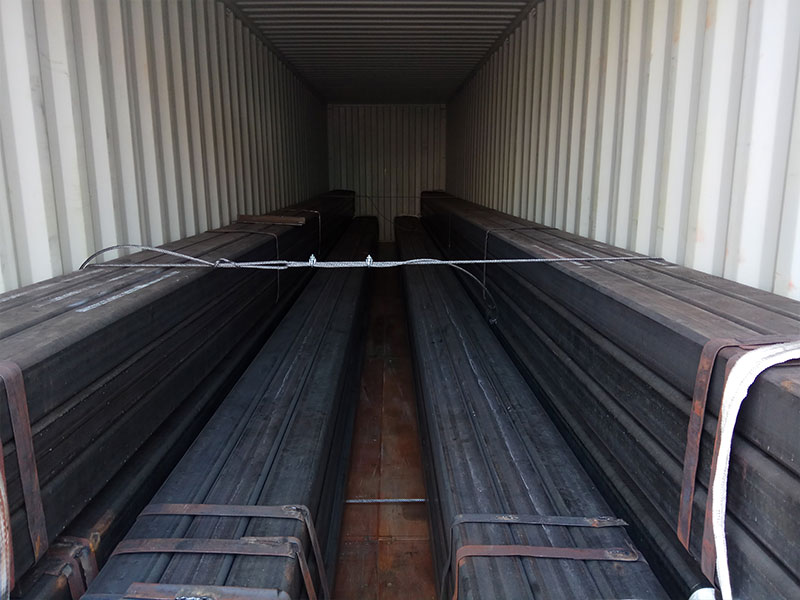

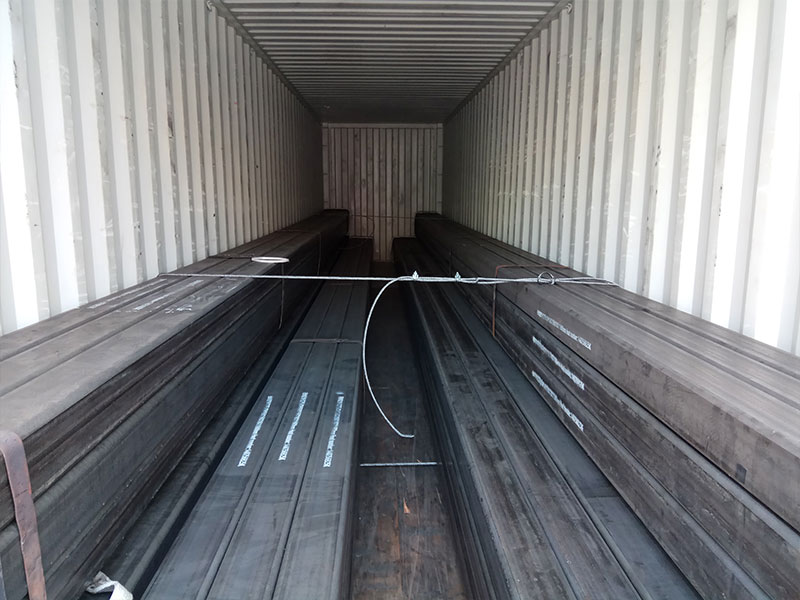

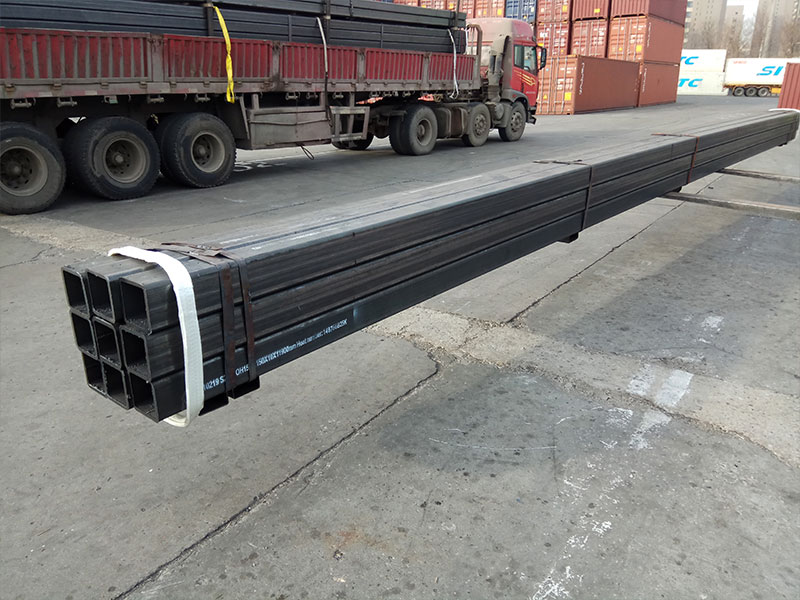

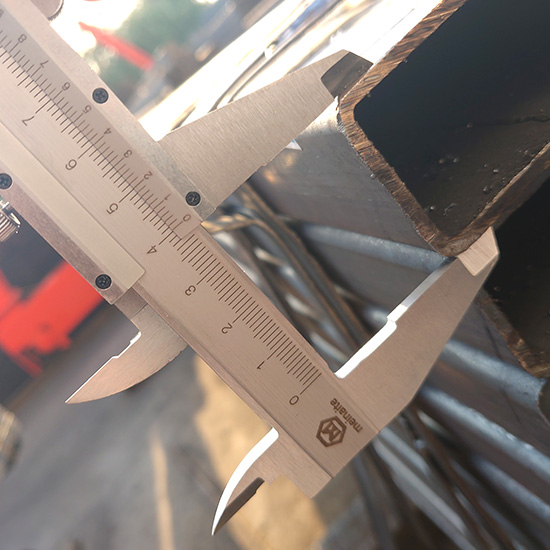

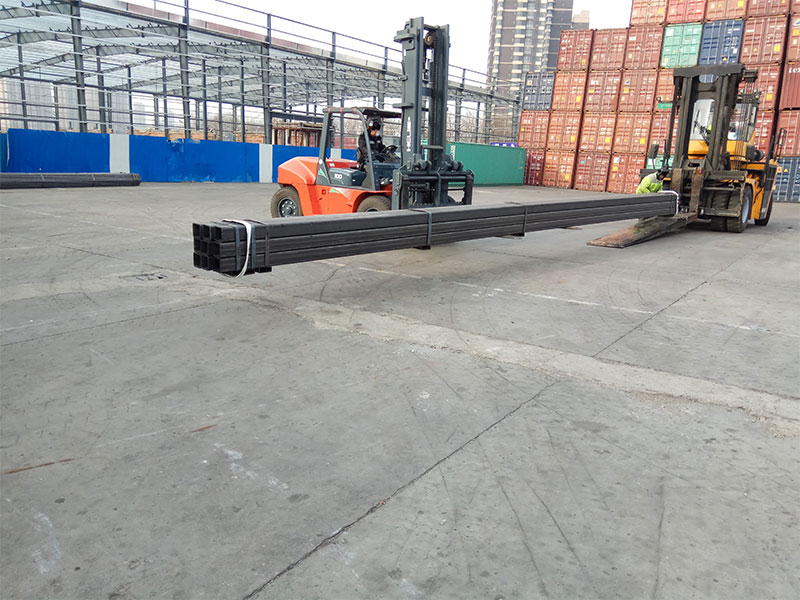

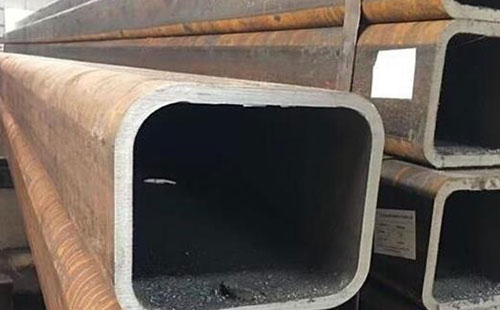

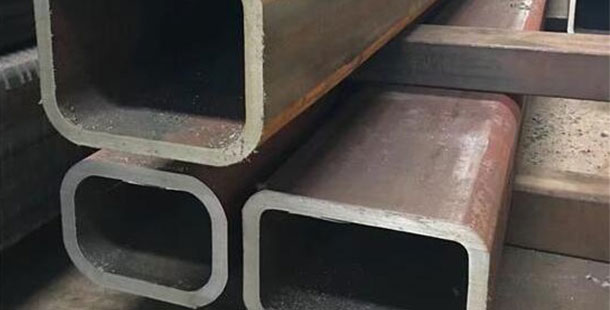

    Rectangular pipeMeasurement of Rectangular TubesLoading of square tubesa500 square tubes

Know more about this product price, catalogue, mill test certificate,  please inquiry to: sales@nan-steel.com
