H Beam

H beam stanard:

EN standard: EN10034-1993, EN10025-3-2004
Grade: S235, S275, S355, S235JR, S355J0, S355J2, S355JR

ASTM standard: ASTM A572/A572M, ASTM A336M
Grade: A36、A572、A992

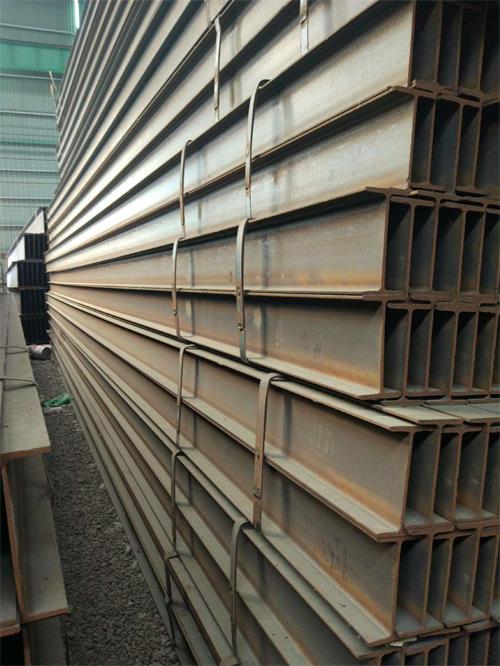

H-beam is a type of structural steel beam made from rolled steel. It has wide flanges that create a cross-section resembling an uppercase H and is used extensively in metal construction.

H-beams are divided into hot-rolled H-beams and welded H-beams (H). Hot-rolled H-beams are further divided into wide-flange H-beams (HW), middle-flange H-beams (HM) and narrow-flange H-beams (HN). ) three kinds.

H-Section Steel Beams are available in a range of sizes with widths between 4”-16” (10.2–40.6 cm), depths from 4”-16” (10.2–40.6 cm), and shared thicknesses between .35”-.83” (9-21 mm). H-Section Steel Beams are available in typical lengths between 8’-20’ (2.44-6.1 m).

There are differences in processing technology, loss and characteristics between hot-rolled H-shaped steel and welded H-shaped steel. See below for details.

1. Different processing techniques
Welded H-shaped steel is made by welding structural steel with appropriate thickness on the edge and waist on a continuous welding unit. Hot-rolled H-shaped steel is formed by a rolling mill according to its appearance and shape.

2. Loss
Hot-rolled H-shaped steel uses less raw materials than welded H-shaped steel, and hot-rolled H-shaped steel can better reduce energy and labor losses, while welded H-shaped steel consumes more labor and materials.

3. Features
Welding H-shaped steel is not easy to ensure uniform product performance, and it also has disadvantages such as limited size specifications. However, it has the advantages of good pressure resistance and high load-bearing capacity. The hot-rolled H-shaped steel structure has high stability and is suitable for building construction in earthquake zones.

H-Beams

Universal Beams
Designation	h	b	s	t	Area	Ix	Iy	ix	iy	Zx	Zy
mmxmmxkg/m	mm	mm	mm	mm	cm²	cm⁴	cm⁴	cm	cm	cm³	cm³
127x76x13	127.0	76.0	4.0	7.6	16.5	473	55.7	5.35	1.84	74.6	14.7
152x89x16	152.4	88.7	4.5	7.7	20.3	834	89.8	6.41	2.10	110	20.2
178x102x19	177.8	101.2	4.8	7.9	24.3	1,356	137	7.48	2.37	153	27.0
203x102x23	203.2	101.8	5.4	9.3	29.4	2,105	164	8.46	2.36	207	32.2
203x133x25	203.2	133.2	5.7	7.8	32.0	2,340	308	8.56	3.10	230	46.0
203x133x30	206.8	133.9	6.4	9.6	38.2	2,896	385	8.71	3.17	280	57.5
254x102x22	254.0	101.6	5.7	6.8	28.0	2,841	119	10.10	2.06	224	23.5
254x102x25	257.2	101.9	6.0	8.4	32.0	3,415	149	10.30	2.15	266	29.0
254x102x28	260.4	102.2	6.3	10.0	36.1	4,005	179	10.50	2.22	308	35.0
254x146x31	251.4	146.1	6.0	8.6	39.7	4,413	448	10.55	3.36	351	61.0
254x146x37	256.0	146.4	6.3	10.9	47.2	5,537	571	10.80	3.48	433	78.0
254x146x43	259.6	147.3	7.2	12.7	54.8	6,544	677	10.90	3.52	504	92.0
305x102x25	305.1	101.6	5.8	7.0	31.6	4,455	123	11.87	1.97	292	24.2
305x102x28	308.7	101.8	6.0	8.8	35.9	5,366	155	12.23	2.08	348	30.5
305x102x33	312.7	102.4	6.6	10.8	41.8	6,501	194	12.47	2.15	416	37.9
305x127x37	304.4	123.4	7.1	10.7	47.2	7,171	336	12.30	2.67	471	54.5
305x127x42	307.2	124.3	8.0	12.1	53.4	8,196	389	12.40	2.70	534	62.6
305x127x48	311.0	125.3	9.0	14.0	61.2	9,575	461	12.50	2.74	616	73.6
305x165x40	303.4	165.0	6.0	10.2	51.3	8,503	764	12.90	3.86	560	93.0
305x165x46	306.6	165.7	6.7	11.8	58.7	9,899	896	13.00	3.90	646	108
305x165x54	310.4	166.9	7.9	13.7	68.8	11,700	1063	13.00	3.93	754	127
356x127x33	349.0	125.4	6.0	8.5	42.1	8,249	280	14.00	2.58	473	45.0
356x127x39	353.4	126.0	6.6	10.7	49.8	10,172	358	14.30	2.68	576	57.0
356x171x45	351.4	171.1	7.0	9.7	57.3	12,070	811	14.50	3.76	687	95.0
356x171x51	355.0	171.5	7.4	11.5	64.9	14,140	968	14.80	3.86	796	113
356x171x57	358.0	172.2	8.1	13.0	72.6	16,040	1108	14.90	3.91	896	129
356x171x67	363.4	173.2	9.1	15.7	85.5	19,460	1362	15.10	3.99	1,071	157
406x140x39	398.0	141.8	6.4	8.6	49.7	12,508	410	15.90	2.87	629	58.0
406x140x46	403.2	142.2	6.8	11.2	58.6	15,685	538	16.40	3.03	778	76.0
406x178x54	402.6	177.7	7.7	10.9	69.0	18,720	1021	16.50	3.85	930	115
406x178x60	406.4	177.9	7.9	12.8	76.5	21,600	1203	16.80	3.97	1,063	135
406x178x67	409.4	178.8	8.8	14.3	85.5	24,330	1365	16.90	3.99	1,189	153
406x178x74	412.8	179.5	9.5	16.0	94.5	27,310	1545	17.00	4.04	1,323	172
457x152x52	449.8	152.4	7.6	10.9	66.6	21,370	645	17.90	3.11	950	85.0
457x152x60	454.6	152.9	8.1	13.3	76.2	25,500	795	18.30	3.23	1,122	104
457x152x67	458.0	153.8	9.0	15.0	85.6	28,930	913	18.40	3.27	1,263	119
457x152x74	462.0	154.4	9.6	17.0	94.5	32,670	1047	18.60	3.33	1,414	136
457x152x82	465.8	155.3	10.5	18.9	104.5	36,590	1185	18.70	3.37	1,571	152.5
457x191x67	453.4	189.9	8.5	12.7	85.5	29,380	1452	18.50	4.12	1,296	153
457x191x74	457.0	190.4	9.0	14.5	94.6	33,320	1671	18.80	4.20	1,458	176
457x191x82	460.0	191.3	9.9	16.0	104.5	37.050	1871	18.80	4.23	1,611	196
457x191x89	463.4	191.9	10.5	17.7	113.8	41,020	2089	19.00	4.29	1,770	218
457x191x98	467.2	192.8	11.4	19.6	125.3	45,730	2347	19.10	4.33	1,957	243
533x210x82	528.3	208.8	9.6	13.2	104.7	47,540	2007	21.30	4.38	1,800	192
533x210x92	533.1	209.3	10.1	15.6	117.4	55,230	2389	21.70	4.51	2,072	228
533x210x101	536.7	210.0	10.8	17.4	128.7	61,520	2692	21.90	4.57	2,292	256
533x210x109	539.5	210.8	11.6	18.8	138.9	66,820	2943	21.90	4.60	2,477	279
533x210x122	544.5	211.9	12.7	21.3	155.4	76,040	3388	22.10	4.67	2,793	320
610x229x101	602.6	227.6	10.5	14.8	128.9	75,780	2915	24.20	4.75	2,515	256
610x229x113	607.6	228.2	11.1	17.3	143.9	87,320	3434	24.60	4.88	2,874	301
610x229x125	612.2	229.0	11.9	19.6	159.3	98,610	3932	24.90	4.97	3,221	343
610x229x140	617.2	203.2	13.1	22.1	178.2	111,800	4505	25.00	5.03	3,622	391
610x305x149	612.4	304.8	11.8	19.7	190.0	125,900	9308	25.70	7.00	4,111	611
610x305x179	620.2	307.1	14.1	23.6	228.0	153,000	11408	25.90	7.07	4,935	743
610x305x238	635.8	311.4	18.4	31.4	303.3	209,500	15837	26.28	7.22	6,589	1,017
686x254x125	677.9	253.0	11.7	16.2	159.5	118,000	4383	27.20	5.24	3,481	346
686x254x140	683.5	253.7	12.4	19.0	178.4	136,300	5183	27.60	5.39	3,987	409
686x254x152	687.5	254.5	13.2	21.0	194.1	150,400	5784	27.80	5.46	4,374	455
686x254x170	692.9	255.8	14.5	23.7	216.8	170,300	6630	28.00	5.53	4,916	518
762x267x134	750.0	264.4	12.0	15.5	171.0	150,700	4788	29.70	5.30	4,018	362
762x267x147	754.0	265.2	12.8	17.5	187.2	168,500	5455	30.00	5.40	4,470	411.4
762x267x173	762.2	266.7	14.3	21.6	220.4	205,300	6850	30.52	5.58	5,387	513.7
762x267x197	769.8	268.0	15.6	25.4	250.6	240,000	8175	30.94	5.71	6,234	610.1
838x292x176	834.9	291.7	14.0	18.8	224.0	246,000	7799	33.14	5.90	5,893	534.7
838x292x194	840.7	292.4	14.7	21.7	264.8	279,200	9066	33.63	6.06	6,641	620.1
838x292x226	850.9	293.8	16.1	26.8	288.6	339,700	11360	34.31	6.27	7,985	773.3
914x305x201	903.0	303.3	15.1	20.2	255.9	325,300	9423	35.65	6.07	7,204	621.4
914x305x224	910.4	304.1	15.9	23.9	285.6	376,400	11240	36.30	6.27	8,269	739
914x305x253	918.4	305.5	17.3	27.9	322.8	436,300	13300	36.76	6.42	9,501	870.8
914x305x289	926.6	307.7	19.5	32.0	368.3	504,200	15600	37.00	6.51	10,880	1,014
914x419x343	911.8	418.5	19.4	32.0	437.3	625,800	39160	37.83	9.46	13,730	1,871
914x419x388	921.0	420.5	21.4	36.6	494.2	719,600	45440	38.16	9.56	15,630	2,161
