When planning a steel construction project, selecting the right H Beam size and dimensions is essential for structural strength, cost estimation, and efficient material procurement. This comprehensive H Beam size chart and dimensions guide explains what each measurement means and provides standard H Beam sizes used in construction worldwide.
Note: Actual weights and dimensions may vary slightly depending on manufacturing standards (GB, JIS, ASTM).
What Are H Beams?
H Beams (also called H‑section steel beams) are structural steel sections with parallel flanges and a wide load‑bearing surface that makes them ideal for heavy structural support. They are widely used in buildings, bridges, industrial frameworks, and other load‑bearing applications due to their high bending resistance and efficient weight distribution.H Beam Specifications
| Product Name | H Beam Factory For Structure H Beam | |
| Thickness | 5mm~34mm | |
| Web width | 100mm~900mm | |
| Flange width(B) | 50mm-400mm | |
| Web thickness(t1) | 4.5mm - 36.5mm | |
| Flange thickness(t2) | 8mm - 64mm | |
| Size | Length | 6-12m/pc or custom as your require |
| Standard | JIS, ASTM GB EN JIS, etc. | |
| Material | Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR, etc. | |
| Technique | Hot rolled & Welded | |
| 1.Industrial structure of the steel structure bearingbracket. | ||
| 2.Underground engineering steel pile and retaining structure. | ||
| 3.Petrochemical and electric power and other industrial equipment structure | ||
| 4.Large span steel bridge components | ||
| Application | 5.Ships, machinery manufacturing frame structure | |
| 6.The train, automobile, tractor beam bracket | ||
| 7.Port of conveyor belt, high speed damper bracket | ||
| 8.Portal frame products | ||
| Package | Standard seaworthy packing or as required | |

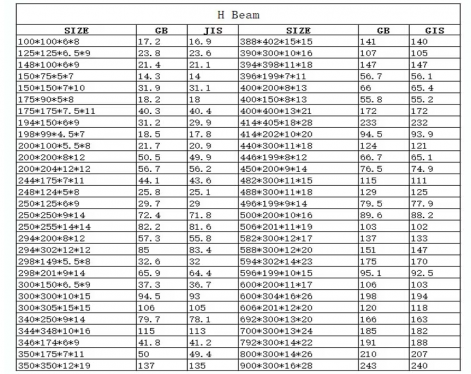

Standard H Beam Size Chart (mm)
The following table shows common H Beam sizes, dimensions, and approximate weights based on standard steel manufacturing specifications.Note: Actual weights and dimensions may vary slightly depending on manufacturing standards (GB, JIS, ASTM).
