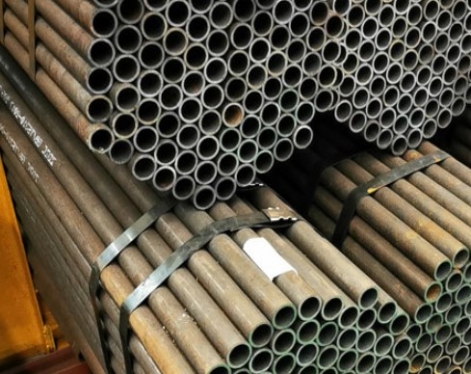

Boiler tubes are a vital component of boiler systems, used to transport high-temperature and high-pressure water, steam or other media. Due to its harsh working environment, boiler tubes must have high heat resistance, pressure resistance, corrosion resistance and good mechanical properties. To ensure the quality and safety of boiler tubes, a number of international standards have been developed, covering materials, manufacturing processes, inspection methods, and other aspects. The following are some of the main international standards and their related contents.
ISO International Standards
The International Organization for Standardization (ISO) has developed a series of standards related to boiler tubes, the most advanced of which is the ISO 9327 series. This standard specifies the chemical composition, mechanical properties, dimensional tolerances and inspection requirements for seamless steel tubes for boilers and pressure vessels. The ISO 9327 standard applies to boiler tubes used in high-temperature and high-pressure environments, ensuring their reliability under extreme conditions.
Additionally, ISO 9330 specifies the manufacturing and inspection requirements for welded boiler tubes, applicable to medium- and low-pressure boiler systems. ISO standards are widely adopted worldwide, providing uniform technical specifications for the international trade in boiler tubes.
ASTM American Society for Testing and Materials Standards
ASTM, the American Society for Testing and Materials, is a major influence in the field of boiler tubes. Here are some ASTM standards related to boiler tubes:
ASTM A192/A192M: This standard specifies the requirements for seamless carbon steel pipes for high-pressure boilers. It is suitable for boiler tubes with thinner walls and smaller outer diameters. The material has high thermal conductivity and good weldability.
ASTM A213/A213M: This standard applies to seamless ferritic and austenitic alloy steel tubes for boilers, superheaters, and heat exchangers. Materials include T5, T9, T11, and T22 alloy steels, and are suitable for high-temperature and high-pressure environments.
ASTM A335/A335M: This standard specifies requirements for seamless ferritic alloy steel pipe for high-temperature service, suitable for high-pressure boilers and superheaters. Materials include P5, P9, P11, and P22 alloy steels, offering excellent heat and corrosion resistance.
ASTM A179/A179M: This standard applies to seamless carbon steel tubes for heat exchangers and condensers, suitable for low- and medium-pressure boiler systems.
ASTM standards are renowned for their rigor and comprehensiveness and are widely used in North America and beyond.
EN European Standards
The European Committee for Standardization (CEN) has developed a series of EN standards related to boiler tubes. The EN 10216 series of standards specifies the technical delivery conditions for seamless steel tubes for boilers and pressure vessels. Here are some specific standards in the EN 10216 series:
EN 10216-2: This standard specifies the requirements for seamless tubes made of non-alloy and alloy steels for use in high temperature and high pressure environments.
EN 10216-3: This standard specifies the requirements for alloy steel seamless tubes suitable for boilers and pressure vessels.
In addition, the EN 12952 standard is specifically for the design and manufacture of water-tube boilers, covering the material selection, manufacturing process and inspection requirements for boiler tubes.
JIS Japanese Industrial Standard
Japanese Industrial Standards (JIS) also have a significant impact on the boiler tube industry. Here are some JIS standards related to boiler tubes:
JIS G3461: This standard specifies the requirements for carbon steel and alloy steel seamless tubes for boilers and heat exchangers, and is applicable to medium and high pressure boiler systems.
JIS G3462: This standard specifies the requirements for alloy steel seamless tubes for boilers and heat exchangers, suitable for high temperature and high pressure environments.
JIS standards are known for their high precision and strict quality control and are widely used in Japan and Asia.
GB Chinese National Standard
Chinese national standards (GB) also play an important role in the field of boiler tubes. The following are some GB standards related to boiler tubes:
GB 5310: This standard specifies the requirements for seamless steel tubes for high-pressure boilers, suitable for high-temperature and high-pressure environments. Materials include alloy steels such as 20G, 15CrMoG, and 12Cr1MoVG.
GB 3087: This standard specifies the requirements for seamless steel tubes for low-pressure boilers and is applicable to medium and low-pressure boiler systems.
The GB standard combines the actual needs of China's boiler industry and is widely used in the domestic market.
ASME American Society of Mechanical Engineers Standards
ASME standards play an important role in the boiler and pressure vessel industry. The following are some ASME standards related to boiler tubes:
ASME SA192: This standard specifies requirements for seamless carbon steel tubes for high-pressure boilers, similar to ASTM A192/A192M.
ASME SA213: This standard specifies requirements for seamless ferritic and austenitic alloy steel tubes for boilers, superheaters, and heat exchangers, similar to ASTM A213/A213M.
ASME standards are known for their stringent quality requirements and safety, and are widely used in the global boiler and pressure vessel industry.
DIN German Standard
The German Institute for Standardization (DIN) has established a series of standards related to boiler tubes, the most prominent of which is DIN 17175. This standard specifies the requirements for seamless steel tubes for high-temperature service, suitable for boilers and pressure vessels. Materials used include alloy steels such as St35.8, St45.8, and 15Mo3, offering excellent heat and corrosion resistance.
BS British Standard
The British Standards Institution (BS) has developed a series of standards related to boiler tubes, the most important of which is BS 3059. This standard specifies the requirements for seamless steel tubes for boilers and superheaters, suitable for use in high temperature and high pressure environments.
Conclusion
International standards for boiler tubes cover materials, manufacturing processes, inspection methods, and other aspects, ensuring their safety and reliability in high-temperature and high-pressure environments. While standards vary from country to country, they all aim to improve the quality and performance of boiler tubes. In practical applications, the appropriate standard should be selected based on specific needs, and the relevant technical requirements must be strictly adhered to to ensure the safe operation of boiler systems.
