3LPE vs FBE Coating Comprehensive Guide

Steel pipelines are a critical component of oil, gas, and water transportation. Protecting them from corrosion is essential to ensure long service life and safety. Two of the most widely used external pipe coatings are 3LPE (Three-Layer Polyethylene) and FBE (Fusion Bonded Epoxy). Understanding the differences between these coatings helps engineers, contractors, and project managers choose the right solution for specific applications.


FBE (Fusion Bonded Epoxy)

As the first generation of thermosetting anti-corrosion technology—originating in 1961—FBE is applied via an electrostatic spraying process, undergoing fusion and curing at temperatures between 230°C and 250°C to form a single-layer epoxy structure with a thickness of 300–500 μm. Its core advantage lies in forming chemical bonds with the steel substrate, achieving an adhesion strength exceeding 70 N/cm², while also demonstrating excellent resistance to chemical corrosion (remaining stable in environments with a pH range of 1–14).


3LPE (Three-Layer Polyethylene)

Developed in the 1980s as a composite coating system, 3LPE employs a structure consisting of an "epoxy primer + copolymer adhesive + polyethylene outer layer," with a total thickness ranging from 2 to 4 mm. Specifically:
The bottom FBE layer (≥80 μm) serves as a chemical barrier.
The intermediate layer (200 μm) facilitates the chemical coupling between the epoxy and the polyethylene.
The outer HDPE layer (1.8–3.7 mm) provides mechanical protection. This design allows the system to combine the superior adhesion of FBE with the robust physical protection capabilities of polyethylene.

3LPE vs FBE Coating – Key Differences

Feature	3LPE Coating	FBE Coating
Layers	3 (Epoxy + Adhesive + Polyethylene)	1 (Epoxy)
Mechanical Protection	High	Moderate
Corrosion Resistance	Excellent	Good
Suitable Pipe Diameter	Large (≥6 inches)	Small to medium (<12 inches)
Application Cost	Higher	Lower
Typical Usage	Long-distance pipelines	Shorter pipelines, primer layer

How to Choose Between 3LPE and FBE？

Use 3LPE if the pipeline is long, buried, or exposed to mechanical stress.
Use FBE for smaller pipelines or when cost efficiency is important.
Combination: FBE can act as the primer in 3LPE systems, ensuring strong adhesion and layered protection.

Optimization of Anti-corrosion Technology
1.Nano-modified coating: 3LPE with added graphene improves wear resistance by 40% (Taber wear < 12mg)
2.Intelligent sensing system: FBE coating with integrated fiber optic sensor can monitor damage down to 0.1mm in real time
3.Low-temperature curing technology: Developed 120℃ curing FBE suitable for plastic composite pipes (such as HDPE gas pipes)
4.Self-healing material: Microencapsulated 3LPE releases silane repair agent after damage (repair efficiency > 85%)

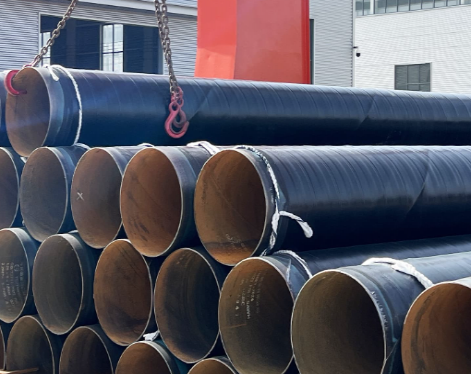

Applications of 3LPE/FBE Coated Pipes

3PE/3LPE coated pipes and FBE epoxy-coated steel pipes are widely utilized in pipeline systems for the transportation of oil, natural gas, water, and other fluids. They demonstrate exceptional resistance to corrosion caused by chemical substances, moisture, and harsh environmental conditions.

In practical applications, 3LPE coated pipes are typically selected for the external corrosion protection and mechanical safeguarding of buried, onshore, or subsea pipelines (designed to withstand soil stress and backfill abrasion, as well as to serve as a moisture barrier). Conversely, FBE is frequently chosen as an internal lining material to enhance fluid flow efficiency and provide internal corrosion protection; furthermore, FBE may also be employed as an external coating in instances where the risk of mechanical damage can be effectively mitigated through specific construction techniques and supplementary protective measures.


Types of Pipes Suitable for 3LPE/3PE or FBE Coating

Almost all types of steel pipes can be coated with FBE or 3LPE/3PE, including:

Stainless Steel Pipes
ASTM A312 and ASTM A269 stainless steel pipes

Carbon Steel Pipes
API 5L line pipes (Grade B to Grade 80)
ASTM A53 pipes (including hot-dip galvanized)
ASTM A106 pipes
ASTM A252 pipes
ASTM A134 and A135 pipes
ASTM A333 pipes
Alloy Steel Pipes
ASTM A335 pipes

Nickel Alloy Pipes
CRA (Corrosion-Resistant Alloy) Clad or Lined Pipes
For RFQs of 3LPE coated pipes, it is helpful to provide:
Pipe standard and grade
Outer diameter (OD) and wall thickness (WT)
Coating application length (full length or cutbacks)
Installation conditions (buried, directional drilling, offshore/subsea, or above-ground)
These factors generally determine the coating type, thickness, and inspection requirements.



Conclusion

Selecting between FBE and 3LPE requires the establishment of a multi-dimensional uation framework that comprehensively considers factors such as environmental corrosivity (CUI index), mechanical stress (soil shear forces), and economic viability (LCC analysis). Driven by advancements in materials science, coating technology is evolving from passive protection toward active adaptation; in the future, intelligent coating systems will enable predictive maintenance for corrosion risks, thereby ushering pipeline integrity management into a new era.
