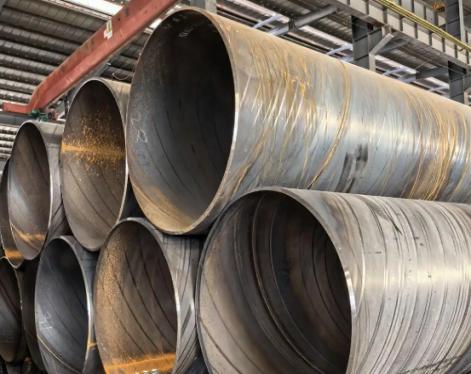

API 5L SSAW Steel Pipe refers to spiral welded steel pipe manufactured according to the pipeline standard issued by the American Petroleum Institute, specifically API 5L.SSAW stands for Spiral Submerged Arc Welded, a manufacturing method in which steel coils are formed into a pipe shape and welded along a spiral seam using submerged arc welding technology.
Process Characteristics: Employing a two-step pre-welding method, separating forming and welding significantly reduces residual stress and improves weld toughness.
Steel Grade Coverage: Covering grades such as GR.A, GR.B, and X42-X80, with X70 and X80 being the mainstream choices for oil and gas transportation, achieving yield strengths of 485-605 MPa.
Size Range: Outer diameter 219-3048 mm, wall thickness 4-30 mm, with flexible pipe diameter adaptation achieved by adjusting the forming angle (15°-75°).
Commonly Used Grades
API 5L Grade B
Widely used for water pipelines and low-pressure systems
API 5L X52
Common grade for oil and gas transportation pipelines
API 5L X65 / X70
High-strength steel used for long-distance high-pressure pipelines
Higher grades provide greater strength and pressure resistance, making them suitable for demanding pipeline conditions.
Common coating types include:
FBE Coating
Fusion Bonded Epoxy (FBE) provides excellent corrosion resistance and is widely used for oil and gas pipelines.
3LPE Coating
Three-layer polyethylene coating offers:
Strong corrosion protection
Mechanical resistance
Long service life
Cement Mortar Lining
Used mainly in water transmission pipelines, protecting the inner wall from corrosion and improving water quality.
Proper coating significantly increases the service life of pipeline systems.
1.Cost Efficiency
Spiral welding allows efficient production using steel coils.
2.Large Diameter Capability
SSAW pipes can reach diameters exceeding 3 meters.
3.Strong Welded Joints
Submerged arc welding provides reliable and durable weld seams.
4.Flexible Production
Manufacturers can easily adjust pipe diameter by changing the spiral angle.
Because of these benefits, SSAW pipes are widely used in large-scale infrastructure and energy transportation projects.
API 5L SSAW Steel Pipe Definition and Standards System
API 5L SSAW Steel Pipe (spiral submerged arc welded steel pipe) is a steel pipe manufactured from strip steel coils through spiral forming and double-sided submerged arc welding processes. It conforms to the American Petroleum Institute (API) Spec 5L standard and the Chinese standard GB/T 9711. Its core characteristics include:Process Characteristics: Employing a two-step pre-welding method, separating forming and welding significantly reduces residual stress and improves weld toughness.
Steel Grade Coverage: Covering grades such as GR.A, GR.B, and X42-X80, with X70 and X80 being the mainstream choices for oil and gas transportation, achieving yield strengths of 485-605 MPa.
Size Range: Outer diameter 219-3048 mm, wall thickness 4-30 mm, with flexible pipe diameter adaptation achieved by adjusting the forming angle (15°-75°).
API 5L SSAW Steel Pipe Grades
API 5L defines several steel grades depending on yield strength requirements.| Grade | Minimum Yield Strength |
| B | 35,000 psi |
| X42 | 42,000 psi |
| X46 | 46,000 psi |
| X52 | 52,000 psi |
| X56 | 56,000 psi |
| X60 | 60,000 psi |
| X65 | 65,000 psi |
| X70 | 70,000 psi |
Commonly Used Grades
API 5L Grade B
Widely used for water pipelines and low-pressure systems
API 5L X52
Common grade for oil and gas transportation pipelines
API 5L X65 / X70
High-strength steel used for long-distance high-pressure pipelines
Higher grades provide greater strength and pressure resistance, making them suitable for demanding pipeline conditions.
Surface Coating and Corrosion Protection
Since pipelines often operate in harsh environments, SSAW pipes are usually protected with anti-corrosion coatings.Common coating types include:
FBE Coating
Fusion Bonded Epoxy (FBE) provides excellent corrosion resistance and is widely used for oil and gas pipelines.
3LPE Coating
Three-layer polyethylene coating offers:
Strong corrosion protection
Mechanical resistance
Long service life
Cement Mortar Lining
Used mainly in water transmission pipelines, protecting the inner wall from corrosion and improving water quality.
Proper coating significantly increases the service life of pipeline systems.
Advantages of API 5L SSAW Steel Pipe
SSAW pipes provide several key advantages compared with other pipe types.1.Cost Efficiency
Spiral welding allows efficient production using steel coils.
2.Large Diameter Capability
SSAW pipes can reach diameters exceeding 3 meters.
3.Strong Welded Joints
Submerged arc welding provides reliable and durable weld seams.
4.Flexible Production
Manufacturers can easily adjust pipe diameter by changing the spiral angle.
Because of these benefits, SSAW pipes are widely used in large-scale infrastructure and energy transportation projects.
