Precision seamless tubes are high-precision steel tubes produced by cold rolling or cold drawing. Precision seamless steel tubes offer advantages such as no oxide layer on the inner and outer walls, no leakage under high pressure, high precision, high surface finish, and no deformation or cracks during cold bending, flaring, or flattening. However, many people are unclear about the differences between precision seamless tubes and ordinary seamless steel tubes. Today, a precision tube manufacturer will introduce the differences to you.

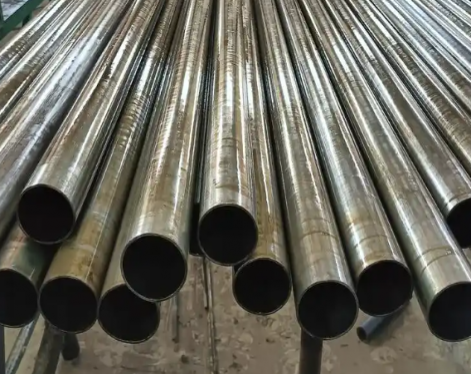

What are precision seamless tubes?
Precision seamless tubes are high-precision steel tube materials made through cold drawing or hot rolling processes. The materials include carbon steel (10#, 20#, 45#), alloy steel (Q345B, 40Cr), and stainless steel (304#, duplex steel), etc. The main chemical components include carbon (C), silicon (Si), manganese (Mn), sulfur (S), phosphorus (P), and chromium (Cr) [1] [3-4]. The production process includes billet pickling, cold rolling, heat treatment, and non-destructive testing (eddy current testing, industrial CT), etc. Product types include seamless tubes and welded tubes.
What are the differences between precision seamless tubes and ordinary seamless tubes?
Cold-drawn precision seamless tubes and ordinary seamless tubes are two common types of pipes, and they have certain differences in manufacturing process, performance characteristics, and application fields. The differences between these two types of seamless tubes are described below:
1. Different manufacturing processes:
Cold-drawn precision seamless tubes are made through a cold drawing process. Their production process involves multiple drawing and cold drawing steps to ensure a uniform internal structure, high surface finish, and precise dimensions. Ordinary seamless tubes are usually produced by hot rolling or hot extrusion, and their manufacturing process is relatively simple and the cost is lower.
2. Different dimensional accuracy:
Cold-drawn precision seamless tubes have higher dimensional accuracy, with inner and outer diameter dimensions controlled within a smaller tolerance range, which can meet the requirements of engineering applications that require high dimensional accuracy. Ordinary seamless tubes have relatively lower dimensional accuracy and larger inner and outer diameter tolerances.
3. Different surface finish:
Cold-drawn precision seamless tubes have a very high surface finish, with no oxide layer, scale, or other contaminants on the surface, and a good appearance and brightness. In contrast, ordinary seamless pipes have lower surface finish and may have defects such as scale and stains on the surface.
4. Different mechanical properties:
Due to the uniform internal structure and fine grain size of cold-drawn precision seamless pipes, their mechanical properties are superior to those of ordinary seamless pipes. Cold-drawn precision seamless pipes have higher strength, hardness, and wear resistance, and can withstand greater pressure and impact.
5. Different application fields:
Cold-drawn precision seamless pipes are mainly used in the manufacture of high-precision, high-demand mechanical parts, such as in the automotive, aerospace, and military industries. Ordinary seamless pipes are widely used in the petroleum, chemical, shipbuilding, and power industries for conveying liquids, gases, and solids.
6.Different production and execution standards
Ordinary seamless steel pipes adhere to standards such as GB8163 (fluid pipes), GB8162 (structural pipes), GB3087, and GB5310 (high-pressure pipes). Precision-rolled seamless steel pipes adhere to standards such as GB3639 (cold-drawn precision pipes) and GB8713 (hydraulic and pneumatic cylinder tubes).
Conclusion
Precision seamless tubes and ordinary seamless tubes serve different purposes in industrial applications. Precision tubes offer high dimensional accuracy, superior surface quality, and enhanced mechanical properties for critical applications. Ordinary seamless tubes provide a reliable, cost-effective solution for general engineering and fluid conveyance. Understanding these differences allows engineers and procurement teams to select the most suitable tube for their project requirements.
What are precision seamless tubes?
Precision seamless tubes are high-precision steel tube materials made through cold drawing or hot rolling processes. The materials include carbon steel (10#, 20#, 45#), alloy steel (Q345B, 40Cr), and stainless steel (304#, duplex steel), etc. The main chemical components include carbon (C), silicon (Si), manganese (Mn), sulfur (S), phosphorus (P), and chromium (Cr) [1] [3-4]. The production process includes billet pickling, cold rolling, heat treatment, and non-destructive testing (eddy current testing, industrial CT), etc. Product types include seamless tubes and welded tubes.
What are the differences between precision seamless tubes and ordinary seamless tubes?
Cold-drawn precision seamless tubes and ordinary seamless tubes are two common types of pipes, and they have certain differences in manufacturing process, performance characteristics, and application fields. The differences between these two types of seamless tubes are described below:
1. Different manufacturing processes:
Cold-drawn precision seamless tubes are made through a cold drawing process. Their production process involves multiple drawing and cold drawing steps to ensure a uniform internal structure, high surface finish, and precise dimensions. Ordinary seamless tubes are usually produced by hot rolling or hot extrusion, and their manufacturing process is relatively simple and the cost is lower.
2. Different dimensional accuracy:
Cold-drawn precision seamless tubes have higher dimensional accuracy, with inner and outer diameter dimensions controlled within a smaller tolerance range, which can meet the requirements of engineering applications that require high dimensional accuracy. Ordinary seamless tubes have relatively lower dimensional accuracy and larger inner and outer diameter tolerances.
3. Different surface finish:
Cold-drawn precision seamless tubes have a very high surface finish, with no oxide layer, scale, or other contaminants on the surface, and a good appearance and brightness. In contrast, ordinary seamless pipes have lower surface finish and may have defects such as scale and stains on the surface.
4. Different mechanical properties:
Due to the uniform internal structure and fine grain size of cold-drawn precision seamless pipes, their mechanical properties are superior to those of ordinary seamless pipes. Cold-drawn precision seamless pipes have higher strength, hardness, and wear resistance, and can withstand greater pressure and impact.
5. Different application fields:
Cold-drawn precision seamless pipes are mainly used in the manufacture of high-precision, high-demand mechanical parts, such as in the automotive, aerospace, and military industries. Ordinary seamless pipes are widely used in the petroleum, chemical, shipbuilding, and power industries for conveying liquids, gases, and solids.
| Feature | Precision Seamless Tubes | Ordinary Seamless Tubes |
| Manufacturing Process | Cold drawing / cold rolling, extra finishing | Hot rolling or basic cold drawing |
| Dimensional Tolerance | Very tight (±0.01–0.05 mm) | Loose (±0.1 mm or more) |
| Surface Finish | High smoothness (Ra ≤0.4–0.8 μm) | Rougher surface, oxide scales possible |
| Wall Thickness Uniformity | Very uniform | Less uniform |
| Mechanical Properties | Higher strength & fatigue resistance | Standard mechanical properties |
| Cost | Higher | Lower |
| Applications | Precision machinery, hydraulic cylinders, aerospace | Fluid transport, boilers, general engineering |
6.Different production and execution standards
Ordinary seamless steel pipes adhere to standards such as GB8163 (fluid pipes), GB8162 (structural pipes), GB3087, and GB5310 (high-pressure pipes). Precision-rolled seamless steel pipes adhere to standards such as GB3639 (cold-drawn precision pipes) and GB8713 (hydraulic and pneumatic cylinder tubes).
Conclusion
Precision seamless tubes and ordinary seamless tubes serve different purposes in industrial applications. Precision tubes offer high dimensional accuracy, superior surface quality, and enhanced mechanical properties for critical applications. Ordinary seamless tubes provide a reliable, cost-effective solution for general engineering and fluid conveyance. Understanding these differences allows engineers and procurement teams to select the most suitable tube for their project requirements.
